30 mm thick side frames combined with robust and massive construction for stable and resonance free work. Precisely grinded camera rail and bearing holder beam with linear tracks. Pneumatic fittings serve to ease the operation of the unit. Japanese made optical system is equipped with high precision motorized focus. A minimum of 350 mm free space is provided for the operators working area to ensure safe and comfortable mounting. 2 high resolution optics and colour cameras as well as 0.005 mm precision measurement system secure precise mounting results. Min/max repeat: 350/1250 mm; Sleeve length: 800-1700 mm

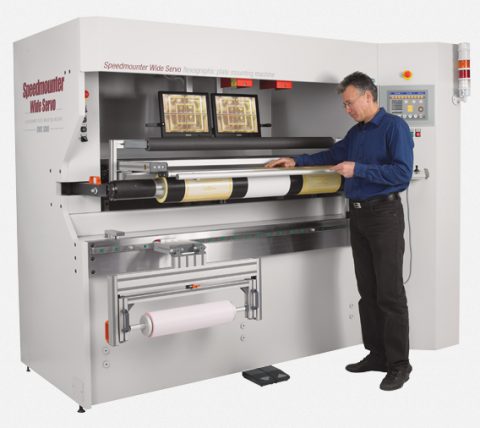

FLEXOTECH SPEEDMOUNTER WIDE SERVO
30 mm thick side frames combined with robust and massive construction for stable and resonance free work. Precisely grinded camera rail and bearing holder beam with linear tracks. Pneumatic fittings serve to ease the operation of the unit. Japanese made optical system is equipped with high precision motorized focus. A minimum of 350 mm free space is provided for the operators working area to ensure safe and comfortable mounting. 2 high resolution optics and colour cameras as well as 0.005 mm precision measurement system secure precise mounting results. Min/max repeat: 350/1250 mm; Sleeve length: 800-1700 mm
Standard specification
• 15 inches TFT displays
• Motorized camera carriages
• Lead-on table with motorized movement or optional double lead-on table with automatic height setting to sleeve diameter
• Lay-down roll with pneumatic movement
• Colour touchscreen HMI terminal;
• PLC control;
• High accuracy measurement system
• High accuracy objectives with motorized focus;
• Built-in air mandrel rotation by gearless
• DDR servo drive;
• AutoMount function
• Job storage function
• Auto Plate Position Calculation (APPC) function;
• Pneumatic sleeve system;
• Tape support assembly with linear rail system
Optional parts
• Double lead-on table system, moved by hand
• Double lead-on table system, full automatic
• Bridge adapter or sleeve
• Bridge holder / trolley
