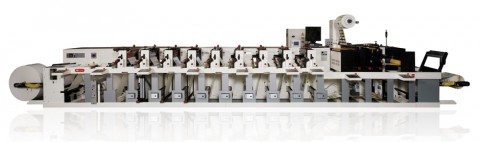

When maximum efficiency and low production costs are key, the FB-Line is the answer.
These reliable narrow-web presses are based on modular flexo technology for easy configuration. Including screen and hot foil Drop-In features to increase your printing options at a very affordable price.
The 16” FB-4200 is available as main shaft-driven or servo-powered presses. The maximum web speed is 750 feet per minute, making the FB-Line the fastest in the narrow-web industry. Exceptionally straightforward to make-ready and operate, the FB-Line is the ideal choice for high-quality, cost-effective printing.
With features such as the convenient splicing table with pneumatic clamping bars, ergonomic slide-out printing stations, easy-to-use operator interface, and advanced die-cutting, and drying systems, the FB-Line will have a positive impact on your bottom line.
Specifications
| FB-2500 | |
| Press speed | 228 m/min. mechanical speed (750 FPM) |
| Web mm (feet/inches) | |
| Unwind diameter | 1.016 mm (40”), max. 350 kg |
| Rewind diameter | 1.016 mm (40”), max. 350 kg |
| Waste rewind diameter | 1.016 mm (40”), max. 40 kg |
| Printing mm (feet/inches) | |
| Web width, max. | 273 mm (10 3/4”) |
| Printing width, max. | 273 mm (10 3/4”) |
| Die-cutting width, max. | 273 mm (10 3/4”) |
| Flexo, repeat length | 139,7-609,6 mm (5 1/2”-24”) |
| Screen, repeat length | 304,8-457,2 mm (12”-18”) |
| Die-cutting repeat length (Revolver) | N/A |
| Die-cutting repeat length (conventional) | 203,2-609,6 mm (8”-24”) |
| Hot foil repeat length | 222,25-457,2 mm (8 3/4”-18”) |
| FB-3300 | |
| Press speed | 228 m/min. mechanical speed (750 FPM) |
| Web mm (feet/inches) | |
| Unwind diameter | 1.016 mm (40”), max. 350 kg |
| Rewind diameter | 1.016 mm (40”), max. 350 kg |
| Waste rewind diameter | 1.016 mm (40”), max. 40 kg |
| Printing mm (feet/inches) | |
| Web width, max. | 350 mm (13 3/4”) |
| Printing width, max. | 350 mm (13 3/4”) |
| Die-cutting width, max. | 350 mm (13 3/4”) |
| Flexo, repeat length | 177,8-609,6 mm (7”-24”) |
| Screen, repeat length | 304,8-457,2 mm (12”-18”) |
| Die-cutting repeat length (conventional) |
203,2-609,6 mm (8”-24”) |
| Hot foil repeat length | 254-457,2 mm (10”-18”) |
| FB-4200 | |
| Press speed | 228 m/min. mechanical speed (750 FPM) |
| Web mm (feet/inches) | |
| Unwind diameter | 1.016 mm (40”), max. 350 kg |
| Rewind diameter | 1.016 mm (40”), max. 350 kg |
| Waste rewind diameter | 1.016 mm (40”), max. 40 kg |
| Printing mm (feet/inches) | |
| Web width, max. | 425 mm (16 3/4”) |
| Printing width, max. | 425 mm (16 3/4”) |
| Die-cutting width, max. | 425 mm (16 3/4”) |
| Flexo, repeat length | 196,85-609,6 mm (7 3/4”-24”) |
| Screen, repeat length | 304,8-457,2 mm (12”-18”) |
| Die-cutting repeat length (conventional) |
203,2-609,6 mm (8”-24”) |
| Hot foil repeat length | 254-457,2 mm (10”-18”) |
